TT-2100HG/TT-2100HPG
TT-2100HG/TT-2100HPG
Faster and More Accurate!
New Spec for Best-seller Parallel Twin-spindle TT-2100G
Newly developed high-precision specification of the best-selling machine TT-2100G.
The cycle time is reduced by increasing the rapid traverse speed with the linear guide specification.
High precision direct measuring system (patented) minimizes the effect of thermal displacement. This system achieves one-shot good quality.
Chuck Size : 6", 8"
Loader specification optimum for your production plan is selectable.
Loader Target Workpiece
φ80×80ｍｍ、0.7kg×2 φ160×80ｍｍ、3.0kg×2
Machine Main Specifications Applied to gantry loader type A or type B
| （Turning） | |||||
|---|---|---|---|---|---|
| TT-2100HG/TT-2100HPG | |||||
| Chuck Size | inch | 6+6 | 8+8 | ||
| Type of Turret | 10-Station Turret （All-Holder Type） |
12-Station Turret （All-Holder Type） |
10-Station Turret （All-Holder Type） |
12-Station Turret （All-Holder Type） |
|
| Max. Turning Diameter | mm | φ240 | |||
| Max. Turning Length | mm | 135.5 | 94 | ||
| Spindle Speed | min-1 | 4500 [OP. 6000] | 3200 [OP. 4500] | ||
| Rotary Tool Speed | min-1 | - | |||
| Rapid Traverse Rate | m/min | X : 30 / Z : 30 | |||
| Spindle Motor （15 min/continuous） |
kW | 7.5/5.5 [OP. 11/7.5] | 11/7.5 | ||
| Rotary Tool Motor （15 min/continuous） |
kW | - | |||
| Machine Height | mm | 2700 | |||
| Required Floor Space | mm | 2825×2615 | |||
| Machine Weight | kg | 5200 | |||
| （Turning＆Milling） | |||
|---|---|---|---|
| TT-2100HCMG/TT-2100HPCMG | |||
| Chuck Size | inch | 6+6 | 8+8 |
| Type of Turret | Rotary Tool Type 10-Station Turret | Rotary Tool Type 10-Station Turret | |
| Max. Turning Diameter | mm | φ240 | |
| Max. Turning Length | mm | 135.5 | 94 |
| Spindle Speed | min-1 | 4500 [OP. 6000] | 3200 [OP. 4500] |
| Rotary Tool Speed | min-1 | 2500 | |
| Rapid Traverse Rate | m/min | X : 30 / Z : 30 | |
| Spindle Motor （15 min/continuous） |
kW | 7.5/5.5 [OP. 11/7.5] | 11/7.5 |
| Rotary Tool Motor （15 min/continuous） |
kW | 5.5/3.7 | |
| Machine Height | mm | 2700 | |
| Required Floor Space | mm | 2825×2615 | |
| Machine Weight | kg | 5400 | |
| Chuck Size | inch | 6+6 | 8+8 |
| Outside Diameter | mm | φ80 [OP. φ160*1] | φ160 [OP. φ80*2] |
| Length | mm | 80 | |
| Weight | kg | 0.7 (×2) [OP. 3 (×2)*1] | 3 (×2) [OP. 0.7 (×2)*2] |
[*1] or [*2] are options by a set.
| Chuck Size | inch | 6+6 | 8+8 |
| Number of Pallets | 16 | ||
| Loading Capacity(Per Pallet) | kg | 40 | |
| Work Stacking Height | mm | 450 | |
Linear Guide (High Speed)
X/Z axis guideway are linear guide specification for higher speed. It has high follow-up performance in micro movement and micro taper machining, and realizes high speed and high precision machining.
The linear guide specification speeds up the X/Z axis feed rate by 25% (30 m/min). Turret axis swivels during movement to reduce cycle time.
High Precision Direct Measuring System
The TT-2100HPG is equipped with a direct measurement system using a glass scale (High Precision Direct Measuring System) on the X-axis, which improves the machining accuracy for a long time by about 70%*.
Feature
Easy process management using dedicated button
Easy measurement management
- The bed has a tank bed structure which can keep thermal displacement to the minimum all day.
- There are two types of specifications for high accuracy spindle on the headstock: "6" chuck specification" and "8" chuck specification", which are combined with FANUC's high performance spindle motors to provide excellent performance.
- 10-station turret (T10) is equipped as standard, and 12-station turret (T12) for multiple processes and 10-station milling turret (T10M) for milling processes are optionally available.
- ENERGY SAVING SYSTEM / Environment Friendly Reduction of power consumption. Use of oil-water separator extends the coolant life.
- Convenient and easy-to-operate software is installed for operators to reduce non-production time such as setup work.
The transfer turnover unit is also equipped as standard.
The device allows simultaneous front and back machining.
Exhibiting optimum performance on the top of each spindle.
* Unlike connecting two one-spindle lathes with a reversing device provided between them, even the space efficiency is obvious.
Operate the machine after selecting right or left with the button. Operation is possible only on the side with the indication lamp turned on. When both of the lamps are turned off, the machine cannot be operated.
Operation on Right Side
Easy operation by integrating right and left machine information!

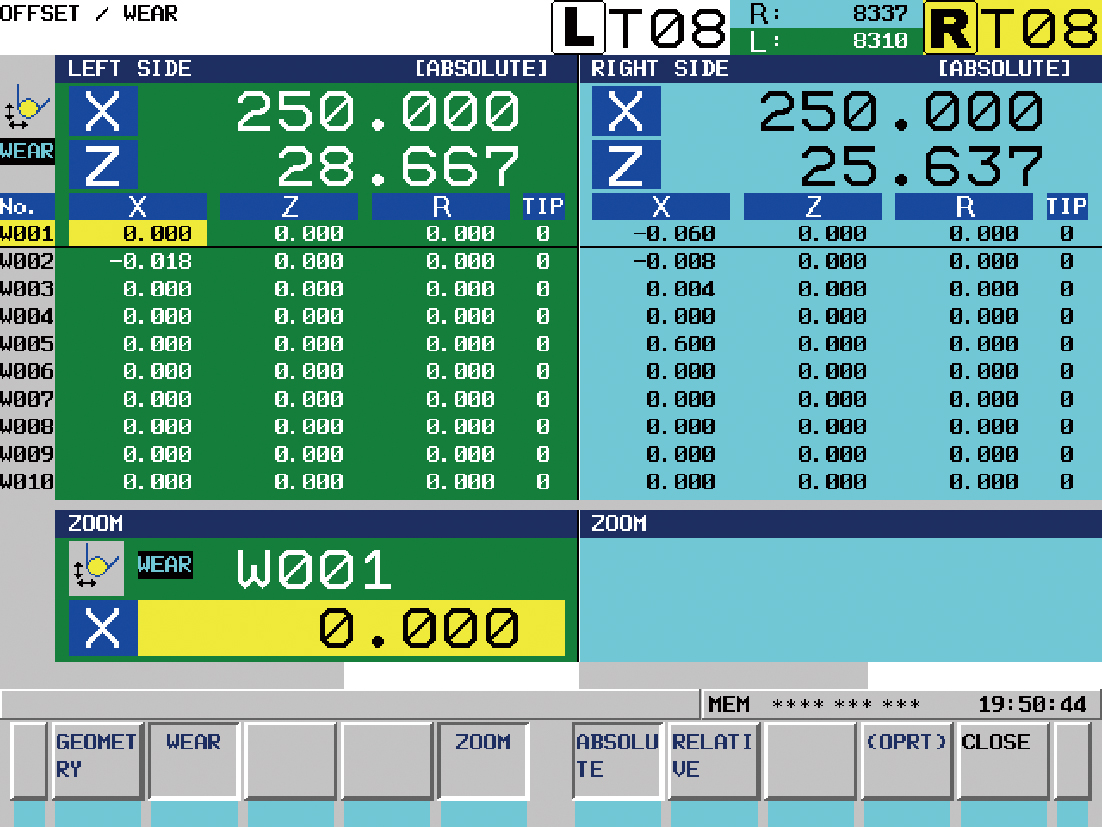

Tool Offset Screen (Example)
Easy loader teaching by guide diagram!

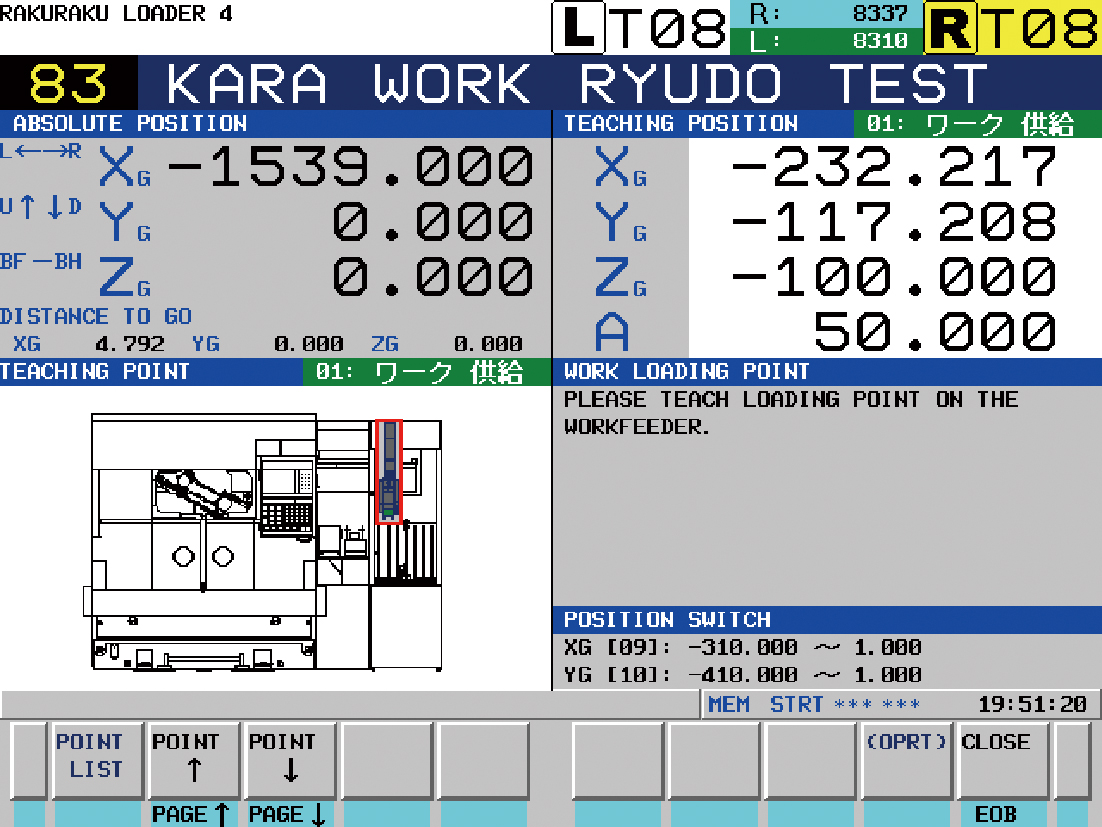

RAKU-RAKU Loader 4 Screen (Example)
