Products

　　　　　　

CNC Lathe

TCC-Series　CNC Lathe (1 Spindle / 1 Turret)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TCC-1100 6 220 171 42
TCC-2100 8 350 189, 289 51
TCN-Series　CNC Lathe (1 Spindle / 1 Turret)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TCN-2100V.EDITION 8 410 300, 600 51
TCN-2100 8 410 300, 600 51
TCN-2600 10 410 250, 550 74, OP.90
TCN-3500 10, 12 430 485, 985 80, OP.108
TC-Series　Highly Rigid CNC Lathe (1 Spindle / 1 Turret)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TC-40 12, 15 450 1020, 2020,
3020		 89
TG-Series　Highly Rigid Large CNC Lath
Machine Chuck Size Max. Turning Dia. Max. Turning Length
in mm mm
TG-6000 15～28 760 1031, 2031,
3031, 4031
TT-Series　Parallel Twin-Spindle CNC Lathe
Machine Chuck Size Loader Target Workpiece
OD × Length		 Weight
in mm×mm kg
TT-500GD 5+5 50×50 0.5 (×2)
TT-1100G 6+6 80×80 0.7 (×2)
TT-2100G 6+6, 8+8 80×80,
160×80		 0.7 (×2), 3 (×2)
TT-2100HG/TT-2100HPG 6+6, 8+8 80×80,
160×80		 0.7 (×2), 3 (×2)
TT-2600G/T-2600G 8+8, 10+10 160×100,
200×120		 4 (×2), 8 (×2)
TT-350G 10+10, 12+12 280×160 15 (×2)
TK-Series　Vertical CNC Lathe (1 Spindle / 1 Turret or Comb)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TK-2100 8 355（Turret） 357（Turret） -
TK-2600 10 355（Turret） 310（Turret） -
TF-Series　Shaft machine tool (1 spindle 2 turrets)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TF-2600 8, 10 260 750, 650 51, 80
TCY-Series　Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TCY-160 6+6 220 291, 491 42
TCY-200 8+6 220 254, 454 51（Left Spindle）
TS-Series　Combined Machining CNC Lathe (Y-Axis, Opposed Twin-Spindle / 1 Turret)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TS-2000 6+6 370 565 51（Left Spindle）
TS-3000 8+6 370 550 67（Left Spindle）
TS-4000 10+6 370 750 82（Left Spindle）
TS-5000 12+8 370 1300 102, OP.82（Left Spindle）

Multi-Tasking Machine

TMX-Series　Multi-Tasking Machine (Tool Spindle Type : B-Axis & ATC)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TMX-2000 8+8 500
（Tool Spindle）		 610 65
TMX-4000 10+10 500
（Tool Spindle）		 1500 80
TM-Series　Multi-Tasking Machine (Opposed Twin-Spindle, Twin-Turret)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TM-2000Y2 6+6 215 640 51（Left Spindle）
TM-3000Y2 8+6 215 620 65（Left Spindle）
TM-4000ⅡY2 8+8 215 800 82（Left Spindle）
TMM-Series　High efficiency, Multi-Tasking Machine (Opposed Twin-Spindle, Twin-Saddle)
Machine Chuck Size Max. Turning Dia. Max. Turning Length Bar Capacity
in mm mm mm
TMM-250M1 10+8 500
（Tool Spindle）		 1300 76.2
（Left Spindle）

Piston Machine

TPS-Series　Non-Circular Machining CNC Lathe
Machine Max. Turning Dia. Max. Turning Length Purpose
mm mm
TPS-V1000 130 160 Pisotn
TPS-3100HⅡ 290 370 Pisotn
TPS-3200HⅡ 246 320 Pisotn Ring
TPS-3300HⅡ - - Pin-Hole
TPS-3400HⅡ 260 285 Pisotn
TPS-3500HⅡ 260 250 Pisotn
TPS-4100HⅡ 320 250 Pisotn
TPS-5000HⅡ 320 250 Pisotn

Machining Center

MAC-Series
Machine X/Y/Z Travel Max. Turning Length
mm mm
MAC-V40 650/410/460 900×410
MAC-Y520 850/520/610 1000×520

CNC / Manual Lathe

TAC-Series
Machine Swing Over Bed Swing Over Cross Slide C-C
mm mm
TAC-360 360 190 -
TAC-510 510 270 L10, L15
TAC-650 650 400 L10, L15, L20, L30
TAC-800 820 540 L10, L20, L30, L40, L50, L60
TAC-950 950 600 L20, L30, L40, L50, L60
TAC-1500 1500 1080 L20, L30, L40, L50, L60
TAC-1800F 1300 880 L10, L20

Manual Lathe

TSL-Series
Machine Swing Over Bed Swing Over Cross Slide C-C
mm mm
TSL-550 360 210 550mm
TSL-800 360 210 800mm
TAL-Series
Machine Swing Over Bed Swing Over Cross Slide C-C
mm mm
TAL-460 460 250 L8, L10
TAL-510 510 300 L10, L15
TAL-540N 540 270 L8
TAL-600 600 380 L10, L15, L20, L30

Software

Software
Software Overview.
iHMI Software Equipped with functions necessary for the process at the processing site to provide consistent support for the work.
TAKISAWA's original functions have been added one after another.
Dialogue software Interactive software to support programming, simulation, and automated operations.

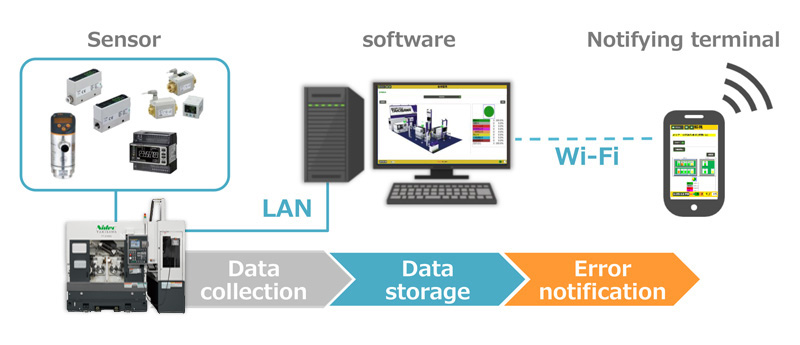

IoT Solution
Other Software RAKU-RAKU Monitor for tool life and cutting load monitoring, RAKU-RAKU Loader for loader operation settings.
